Leading the Way in Advanced Spray Drying Technologies
Innovative Solutions by Acmefil Engineering System Pvt Ltd—Your Trusted Spray Dryer Manufacturer
who are we
About Us
Acmefil Engineering System Pvt Ltd
We specialize in designing and manufacturing state-of-the-art spray drying systems. With over 30 years of experience, we are industry leaders committed to delivering customized spray drying solutions that meet the unique needs of various sectors, including pharmaceuticals, food processing, and chemicals.
Understanding
Spray Dryer Types

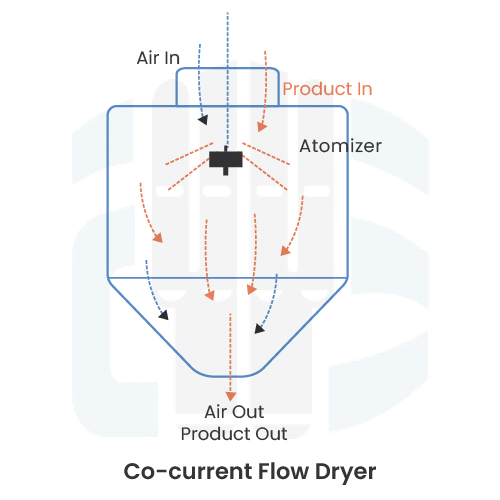

Co-Current Flow Dryer
In this design, both the spray and hot air flow in the same direction, which is ideal for heat-sensitive products. The air’s temperature decreases as water evaporates, reducing the risk of heat damage to the product. This type is popular for food and dairy applications.
Counter-Current Flow Dryer
This dryer design has spray and air entering from opposite ends, maximizing energy efficiency and providing rapid evaporation. However, it’s best suited for products that can tolerate higher temperatures, such as detergents and chemicals.
Mixed Flow Dryer
Combining co-current and counter-current flows, this dryer exposes particles to the hottest air toward the end, making it a choice for products that are not sensitive to heat. The air enters from the top while the atomizer is at the bottom, facilitating thorough drying.

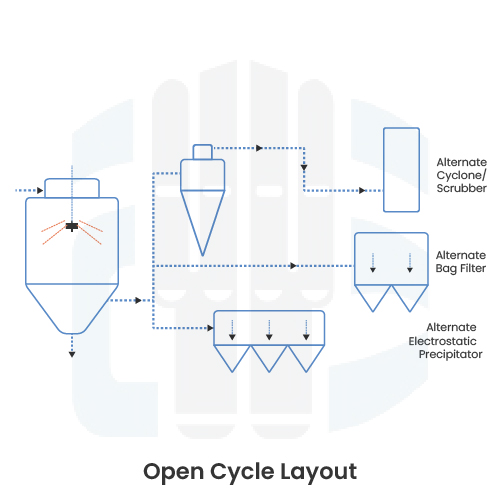

Open Cycle Layout
Designed for materials sensitive to oxygen, this dryer recycles inert gases like nitrogen, preventing oxidation and ensuring the safe drying of flammable or toxic products. This system effectively recaptures solvents and minimizes emissions.
Semi-Closed Cycle Dryer
A hybrid system, semi-closed dryers maintain lower oxygen levels through a self-inertizing setup. This dryer type is efficient for materials that are oxidation-sensitive or pose an explosion risk.

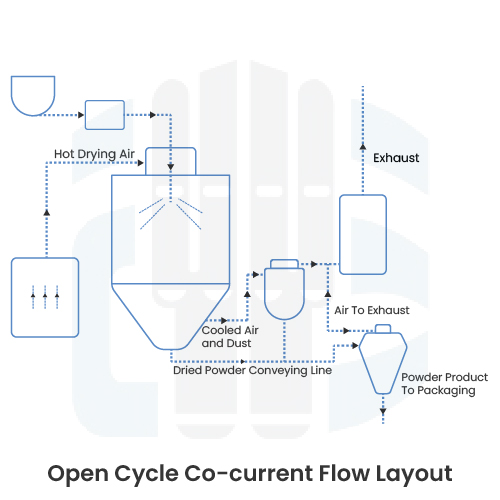

Open Cycle Co-Current Flow Layout
one of the most commonly used configurations in spray drying systems due to its simplicity and efficiency. In this setup, the drying air is drawn from the atmosphere, heated, and passed through the drying chamber alongside the feed spray in the same direction.
Two-Stage Dryer
In a two-stage dryer, the product leaves the chamber with slightly higher moisture content and undergoes further drying in a secondary stage, such as a fluidized or vibrating bed. This setup is optimal for heat-sensitive products, allowing for lower temperatures in the primary drying stage.

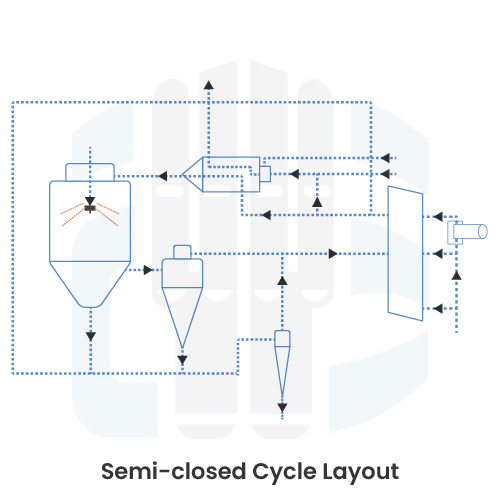

Semi-Closed Cycle Layout (Self-Inertizing)
combines the advantages of open and closed systems, offering enhanced safety and efficiency. In the Self-Inertizing variation, a direct-fired heater is used to control the airflow, and only the air required for combustion enters the system.
Horizontal Dryer
These dryers have a rectangular chamber and typically spray particles horizontally. Products fall to the bottom and are collected, making this design suited for compact setups where short drying times are essential.
we stand out from the rest
Why Choose Us ?
Acmefil Engineering System Pvt. Ltd. for Your Spray Drying Needs
Industry Expertise
Over 30 years of experience in spray drying technologies
Customized Solutions
Tailor-made spray drying systems to meet your unique requirements
Advanced Equipment
Energy-efficient and cutting-edge spray dryers for optimal performance
Proven Excellence
Successful projects and satisfied clients worldwide
Global Presence, Personal Attention
Worldwide reach with personalized service for every project
Exceptional Support
Comprehensive after-sales service, including installation and maintenance
Contact Information
- connect@acmefil.com
- +91 9825013851
Address Details
- Plot No. 535, Phase II G.I.D.C, Vatva Ahmedabad - 382 445 Gujarat - INDIA
get in touch
Request A Quote
faq
Most Common FAQs
Spray drying is a process used to produce dry powder from a liquid or slurry by rapidly drying with a hot gas. This method involves atomizing the liquid into a spray of fine droplets and then introducing it into a drying chamber where it contacts hot air, resulting in quick evaporation of moisture and formation of dry particles.
Spray drying is widely used across various industries, including pharmaceuticals, food and beverages, chemicals, and materials. Common applications include producing milk powder, coffee creamer, pharmaceutical excipients, ceramic materials, and flavor encapsulations.
There are several types of spray dryers, such as rotary atomizer spray dryers, nozzle atomizer spray dryers, and fluidized spray dryers. The choice of spray dryer depends on factors like the properties of the feed material, desired particle size, moisture content, and specific industry requirements.
Spray drying offers precise control over particle size distribution, bulk density, and moisture content, leading to consistent and high-quality end products. It is an efficient drying method that can handle heat-sensitive materials, reduces drying times, and improves energy efficiency compared to other drying techniques.
Acmefil Engineering System Pvt Ltd. is a leading manufacturer of spray dryers with over [X years] of expertise in the field. We offer customized spray drying solutions tailored to your specific needs, ensuring high performance, reliability, and energy efficiency. Our commitment to quality and customer satisfaction makes us the preferred partner for all your spray drying requirements.
